Explosion Proof Reefer Unit

Ex-Machinery has over 20 years of experience in the field of ATEX and explosion safety. In collaboration with OEM’s, Ex-Machinery modifies state-of-the-art equipment and machinery to be ATEX compliant. Through this philosophy Ex-Machinery guarantees explosion safety and up-to-date quality, for every product.

Visit Website

ATEX Explosion Proof Ex Reefer Unit

For use in ATEX Zone 2 environments – such as: Oil&Gas, Chemical, Pharmaceutical, etc.
Based on the most capable reeferunit in internationalcontainer shipping: the Thermo King Magnum Plus.
Able to maintain -40°C box temperature @ +50°C ambient temperature
High efficiency, low power usage allowing cost savings.
Intuitive operation, user-friendly, efficient visualization of all data.
High precision of temperature control, upto +/- 0.25°C

II 3G Ex h ec nA nR IIB T2/T3 GC

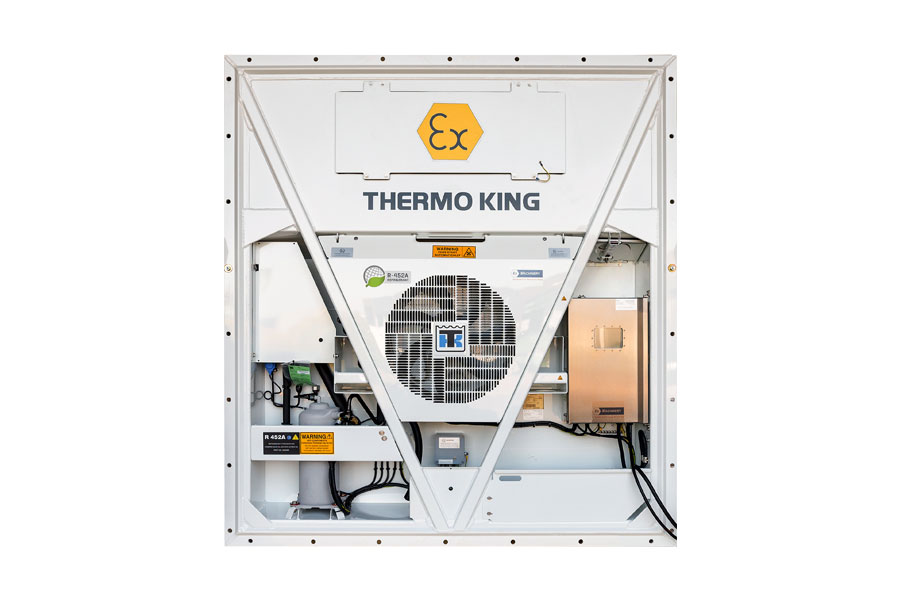

Best of both Worlds: Ex-Machinery’s Magnum Plus for use in ATEX Zone 2

Thermo King Magnum-Plus reefer units are already preferred by many end-users in the Oil&Gas, Pharmaceutical, Chemical and Marine industry. They are widely accepted as the most powerful, reliable and efficient reefer units currently on the market and are now also available for safe use in hazardous areas prone to Gas or Dust explosive atmospheres.

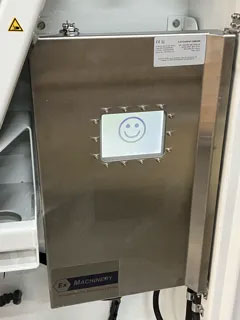

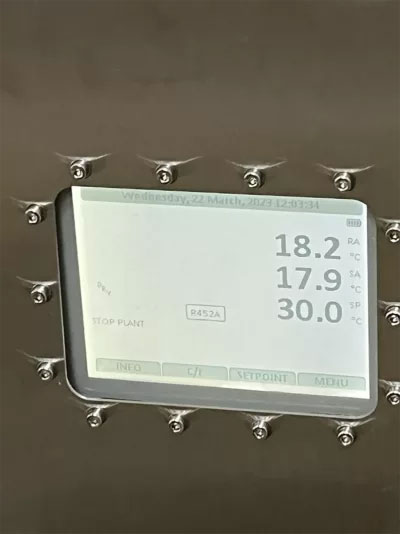

The Ex-M Magnum-Plus offers temperature control with high precision, upto +/- 0.25°C. Combined with the broad setpoint range of -40° upto +30°C, this ensures your goods and substances remain in optimal condition. The Ex-M Magnum-Plus offers all state-of-the-art functionality found in Thermo King’s original product, including the famed easy and intuitive operation. The status of the reefer unit, indicated by smiley faces on the display, can still be viewed at a glance even though the display is now locked behind an impact-proof door.

Why should I choose the Ex-M Thermo King Magnum Plus?

All Magnum Plus functionality has been preserved in the Hazardous Area Design
Leadtime 5-8 weeks; international shipping
Thermo King approves and collaborates with Ex-Machinery and K.C. Trading to offer the Zone 2 solution

ATEX Specifications of Ex Reefer

EU Directive	2014/34/EU (ATEX 114)
ATEX marking gas (inside reefer)	II 3G Ex h ec nA nR IIB T2/T3 GC
ATEX marking gas (outside reefer)	II 3G Ex h ec nA nR IIB T2/T3 GC
Applied standards	EN 60079-0, EN 60079-15, EN 60079-31, EN 80079-36, EN 80079-37

System net cooling capacity – Full cool

Magnum+ Model – Air Cooled Condensing*

Return air to evaporator coil inlet2014/34/EU (ATEX 114)		460/230V, 3 Phase, 60 Hz Power
		Net Cooling Capacity		Power Consumption
		60 Hz Capacity B/hr	60 Hz Capacity kW	60 Hz Power kW
21.1 C (70 F)	56,700	16.603		11.55
1.7 C (35 F)	40,945	11.990		11.03
-17.8 C (0 F)	24,785	7.258		7.57
-29 C (-20 F)	17,215	5.041		6.6
-35 C (-31 F)	14,000	4.104		6.03
Control Circuit Voltage		29 VAC @ 60 Hz
Weight (net) Magnum+ Base Unit		380 Kg (875 lb.)
Setpoint range		-40.0 to +30.0 C (-31.0 to +86.0 F)

* System net cooling capacity with a 38°C (100 F) ambient air temperature and R-404A
